Triple Tube Retractable Mazier Core Barrel for soil sampling

  • 1
  • 2
  • 3

Brand Name : ROSCHEN

Model Number : mazier 86 101 116 131 146

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Supply Ability : 100000000 set

Packaging Details : Wooden box

Payment Terms : T/T,Western Union

Delivery Time : 5 - 8 work days

Contact Now

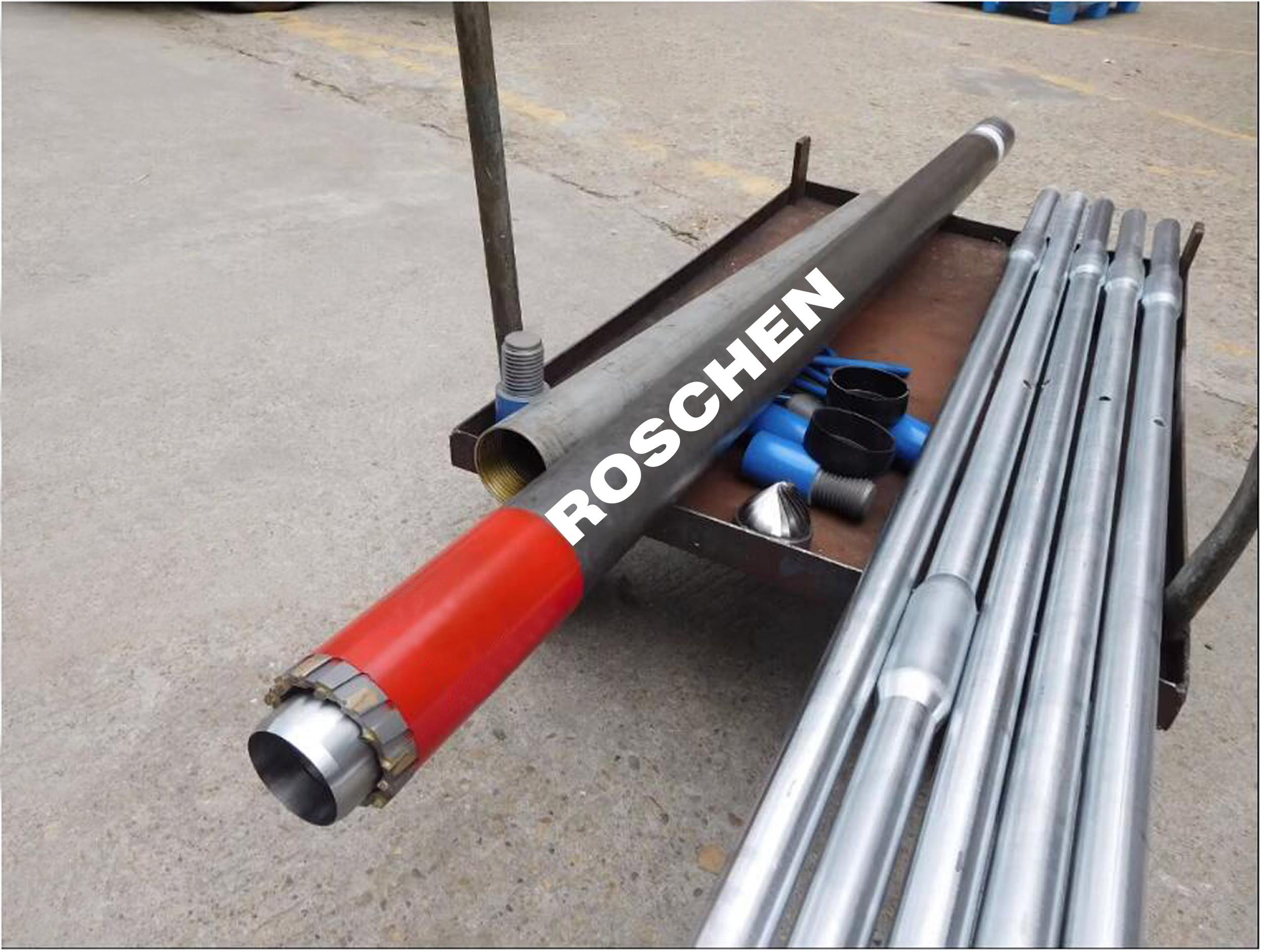

Triple Tube Retractable Mazier Core Barrel for soil sampling



Mazier automatic core barrel


This technology takes large diameter (101 mm) core samples in 1.5 m length pieces.

Using triple wall core barrel permits removal of the sample as it is taken from the ground, guaranteed the undisturbed sample of the core. Thats why these samples in addition good for large diameter geotechnical laboratory tests beyond geological purposes.

The third, inner tube made of plastic and continuously cover the sample.



Triple Tube Retractable Mazier Core Barrel

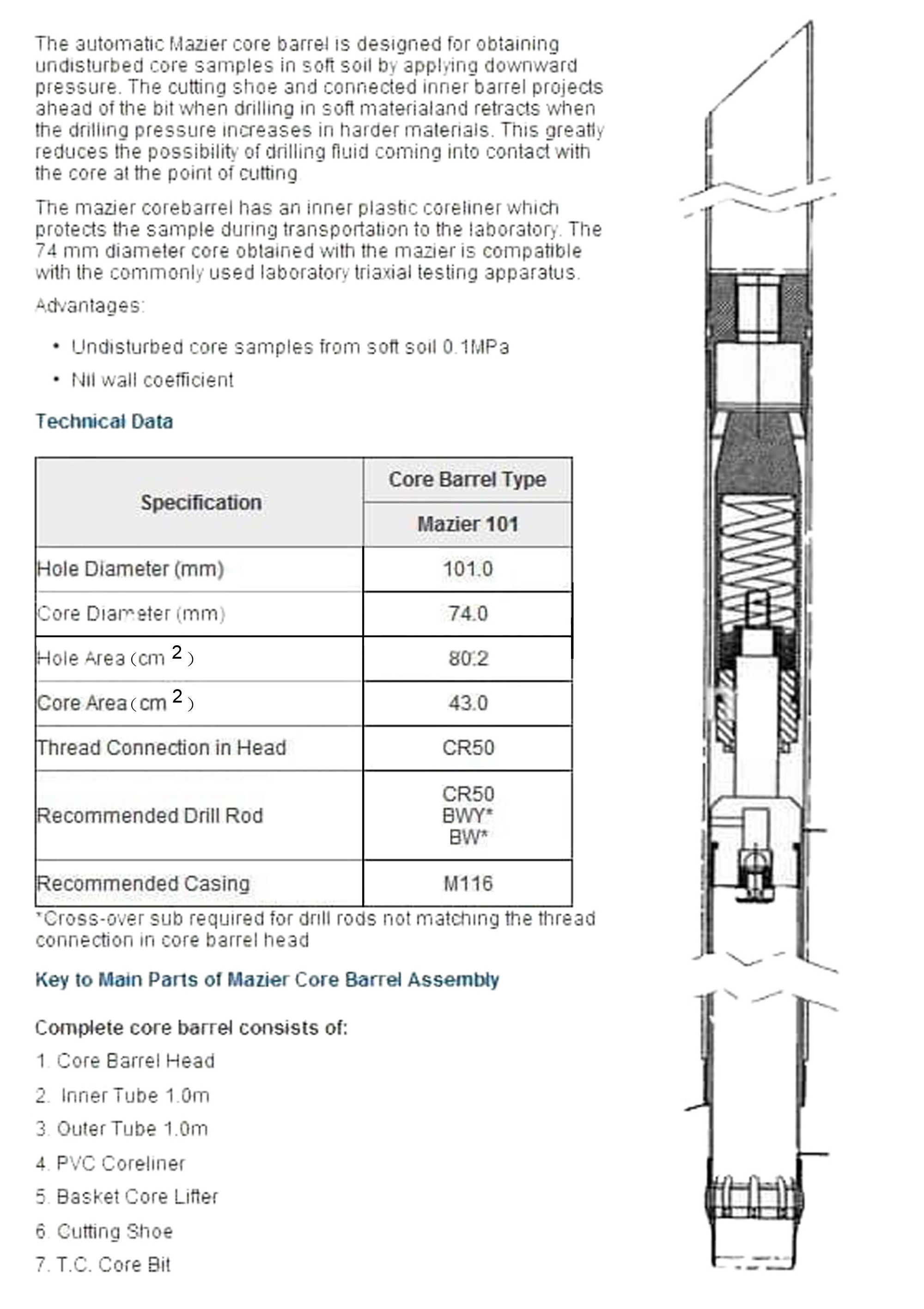

Specification Mazier 101
Outer Diameter (mm) 101
Core diameter (mm) 74.00
Thread of the head CR50/BW/BWY/NW/NWY
Hole Area (cm²) 80.2
Core Area (cm²) 43.0
Recommended Drill Rod CR50/BW/BWY/NW/NWY
Recommended Casing M116



Mazier Core Barrel Specifications
Size Hole Dia.(mm) Core Dia.(mm)
86 86 62
101 101 71.5
116 116 83
131 131 99
146 146 113






Triple Tube Retractable Mazier Core Barrel for soil sampling



Triple Tube Retractable Mazier Core Barrel for soil sampling






Description:



Mazier core barrel is a single rotary triple tube core barrel with inner tube pull ahead, there are many kinds of cutting shoe length are available.



Application:


It suitable for clay, mudstone, sandstone and soft rock formation sampling.
The feature of Mazier core barrel is high core recovery and small sample disturbance.






Product Tags:

mazier 101 sampler



mazier 116 sampler



mazier 86 sampler


China Triple Tube Retractable Mazier Core Barrel for soil sampling factory

Triple Tube Retractable Mazier Core Barrel for soil sampling Images
