High performance 3.0M 8C Drilling Core Barrel for Well Exploration Core Drilling

  • 1
  • 2
  • 3

Brand Name : ROSCHEN

Model Number : AMLC, BMLC, NMLC, HMLC, 3-5/8' x 2-1/2'C, 4-3/8' x 3 C, 5' x 4 C, 7’x 5 C, 10'x 8 C

Certification : ISO, API

Place of Origin : Germany

MOQ : 1 sets

Price : N/A

Supply Ability : 1000 sets

Packaging Details : Polywooden packing box

Name : Core Barrel

Type : Conventional Core Barrel

Style : Wireline Core Barrel

Materials : European 4145 Steel Casing

Model : Impregnated Diamond Core Bits

Metric : Bristish Metric Core Barrel

Standards : T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116

Core Barrels : Boart Longyear Core Barrel

Sweden Core Barrel : Mincon Core Barrel, Atlas Copco Core Barrel

Tools : Wireline Coring Tools

Q 3 Series : HQ 3, NQ 3, PQ 3 Core Barrels

Triple Core Barrel : BMLC, NMLC, HMLC Triple Tube Core Barrels

Series : Wireline Diamond Core Bits

Drilling : Exploration Core Drilling

Drills : Wireline Core Drilling

Mining : Australia Mining

Exploration : Australia Exploration

Model No : Mining Exploration Core Drilling

Usage : Africa Mining

Applications : Copper Mining Drilling

Contact Now

High performance 3.0M 8C Drilling Core Barrel for Well Exploration Core Drilling

  1. 3C Core Barrel
  2. 4C Core Barrel
  3. 6C Core Barrel
  4. 8C Core Barrel
  5. 10C Core Barrel

3C, 4C, 6C, 8C, 10C Core Barrel

8C Core Barrel 3.0 M for construction , reinforced concrete dam sites, bridge, building , well exploration core drilling

8C Core Barrel 1.5 M for construction , reinforced concrete dam sites, bridges, building , water well exploration core drilling

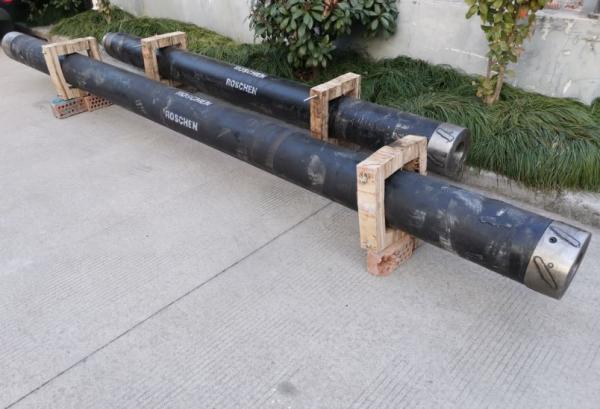

Details of 8C Core Barrel:

ROSCHEN Core Barrel is a precision instrument designed to maximise core recovery in site investigation and exploratory drilling programmes. With this core barrel is its possilble to obtain as near to 100% volumetric ocre recovery in as undisturbed condition as it is possilbe to achieve with rotary core drilling equipment. It is not uncommon for drillers to report 98% + core recovery in the most difficult formations.

Features:


Drilling Core Barrel (Double Tube & Triple Tube)

1. High performance penetration
2. Super premium materials
3. Longer lasting


Specifications:


Drilling Core Barrel (Double Tube, BWF, NWF, HWF, PWF, SWF, HWAF)

Size available:


1. Q series Core Barresls: AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ, PQ3
2. T series Core Barrels: T2-56, T2-66, T2-76, T2-86, T2-101, T6-131, TBW, TNW, T6-H, T6-101, T6-116, T6-146, T6S-76, T6S-86, T6S-101, T6S-131, T6S-146
3. WF series: BWF, NWF, HWF, PWF, SWF, UWF, ZWF
4. Triple Tube Core Barrels: AMLC, BMLC, NMLC, HMLC, 3-5/8' x 2-1/2'C, 4-3/8' x 3 C, 5' x 4 C, 7’x 5 C, 10'x 8 C

TRIPLE TUBE CONVENTIONAL CORE BARREL SPECIFICATIONS
SIZE Set O.D. of Bit
AMLC 47.37mm
BMLC 59.18mm
NMLC 74.80mm
HMLC 98.42mm
3-5/8' x 2-1/2'C 91.31mm
4-3/8' x 3 C 110.61mm
5-1/2' x 4 C 138.89mm
7-3/4’x 5-3/4C 196.04mm
10-1/4'x 8 C 259.10mm
